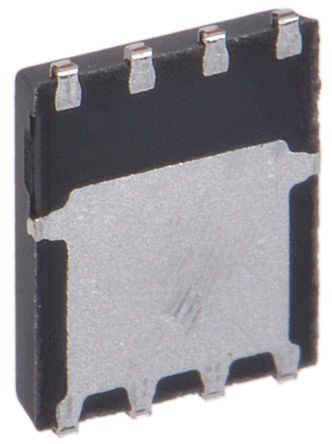

MDU1518URH N-Channel MOSFET, 94 A, 30 V, 8-Pin PowerDFN56 MagnaChip [MDU1518URH]; 162-9837
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 94 A |
| Maximum Drain Source Voltage | 30 V |
| Package Type | PowerDFN56 |
| Mounting Type | Surface Mount |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 6.2 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 2.7V |
| Maximum Power Dissipation | 65.7 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -20 V, +20 V |
| Number of Elements per Chip | 1 |
| Forward Diode Voltage | 1.1V |
| Width | 5.1mm |
| Transistor Material | Si |
| Minimum Operating Temperature | -55 °C |
| Typical Gate Charge @ Vgs | 28.8 nC @ 10 V |
| Height | 1.1mm |
| Maximum Operating Temperature | +150 °C |
| Length | 6.1mm |
