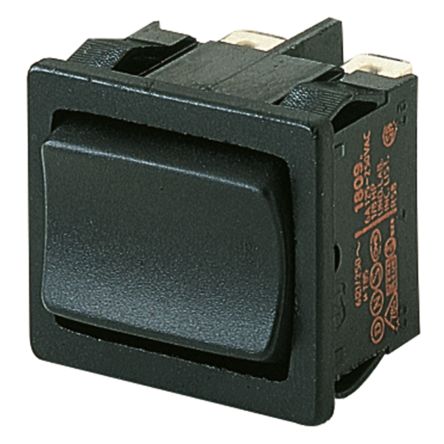

Marquardt Double Pole Double Throw (DPDT), (On)-Off-(On) Rocker Switch Panel Mount [01809.1302-00]; 823-5096
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Double Throw (DPDT) |
| Switch Operation | (On)-Off-(On) |
| Panel Cut Out Width | 19.2mm |
| Panel Cut Out Height | 21.9mm |
| Contact Current Rating | 0.25 |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -20 → +100 (Terminal Side) °C, -20 → +55 (Actuating Side) °C |
| Panel Cut Out Size | 20.5 x 18.6mm |
| Contact Material | Silver |
| Minimum Operating Temperature | -20 (Actuating Side) °C, -20 (Terminal Side) °C |
| AC Voltage Rating | 250V |
| Case Material | Polyamide |
| Contact Resistance | <100mΩ |
| Maximum Operating Temperature | +55 (Actuating Side) °C, +100 (Terminal Side) °C |
