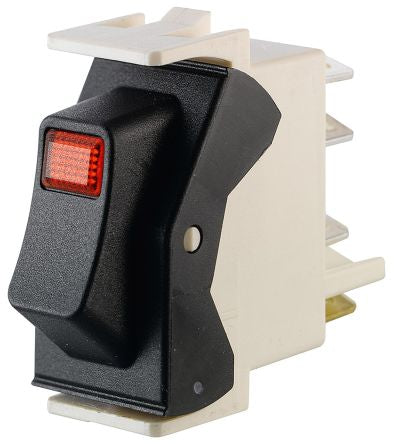

Marquardt Illuminated Single Pole Single Throw (SPST), Momentary Rocker Switch Panel Mount [1550.1950]; 907-0213
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | Momentary |
| Panel Cut Out Width | 46.7mm |
| Panel Cut Out Height | 22.4mm |
| Contact Current Rating | 0.416666666666667 |
| Illuminated | Yes |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Contact Resistance | <100mΩ |
| Mechanical Life | 50000Operations |
| Minimum Operating Temperature | -20 (Actuating Side) °C, -20 (Terminal Side) °C |
| Panel Cut Out Size | 46.7 x 22.4mm |
| Contact Material | Silver |
| Operating Temperature Range | -20 → +55 (Actuating Side) °C, -20 → +85 (Terminal Side) °C |
| Case Material | Polyamide |
| Maximum Operating Temperature | +55 (Actuating Side) °C, +85 (Terminal Side) °C |
| AC Voltage Rating | 250V |
