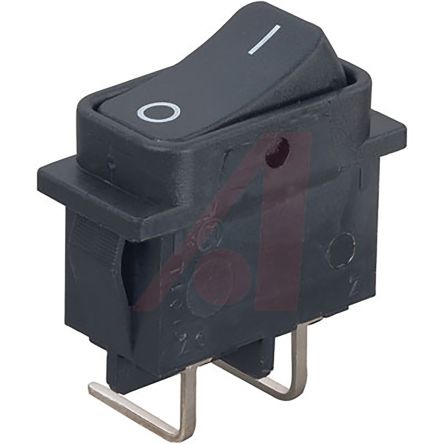

Marquardt Double Pole Single Throw (DPST), Momentary Rocker Switch Panel Mount [1552.4602]; 907-0285
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 27.2mm |
| Panel Cut Out Height | 12.2mm |
| Contact Current Rating | 16 A |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Left Angle PCB |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Rectangular |
| AC Voltage Rating | 250V |
| Case Material | Polyamide |
| Contact Material | Silver |
| Legend Text Colour | White |
| Minimum Operating Temperature | -20 (Actuating Side) °C, -20 (Terminal Side) °C |
| Contact Resistance | <100mΩ |
| Panel Cut Out Size | 27.2 x 12.2mm |
| Operating Temperature Range | -20 → +100 (Terminal Side) °C, -20 → +55 (Actuating Side) °C |
| Mechanical Life | 50000Operations |
| Maximum Operating Temperature | +55 (Actuating Side) °C, +100 (Terminal Side) °C |
