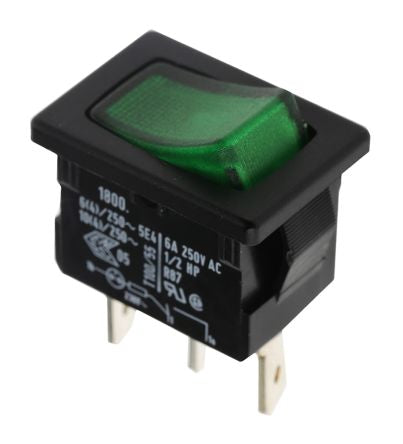

Marquardt Illuminated Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount [1800.1108]; 741-0915
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 12.9mm |
| Panel Cut Out Height | 19.2mm |
| Contact Current Rating | 0.416666666666667 |
| Illuminated | Yes |
| Actuator Colour | Green |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Quick Connect |
| Actuator Shape | Rectangular |
| Minimum Operating Temperature | -20°C |
| Contact Resistance | 100mΩ |
| Mechanical Life | 50000Operations |
| Panel Cut Out Size | 19.4 x 12.9mm |
| Operating Temperature Range | -20 → +55°C |
| Maximum Operating Temperature | +55°C |
| AC Voltage Rating | 250V |
| Case Material | Polyamide |
| Contact Material | Silver |
