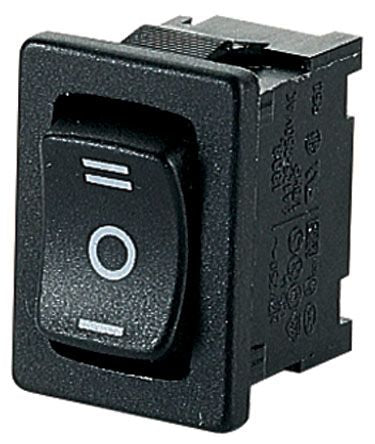

Marquardt Single Pole Double Throw (SPDT), On-Off-On Rocker Switch Panel Mount [1808.6103]; 907-0667
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | On-Off-On |
| Panel Cut Out Width | 19.2mm |
| Panel Cut Out Height | 12.9mm |
| Contact Current Rating | 0.25 |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Solder |
| Legend Text | On (symbol); Off (symbol); On (symbol) |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 19.8 x 12.9mm |
| Minimum Operating Temperature | -20 (Actuating Side) °C, -20 (Terminal Side) °C |
| Operating Temperature Range | -20 → +100 (Terminal Side) °C, -20 → +55 (Actuating Side) °C |
| Legend Text Colour | White |
| Contact Material | Silver |
| Maximum Operating Temperature | +55 (Actuating Side) °C, +100 (Terminal Side) °C |
| AC Voltage Rating | 250V |
| Case Material | Polyamide |
| Mechanical Life | 50000Operations |
| Contact Resistance | <100mΩ |
