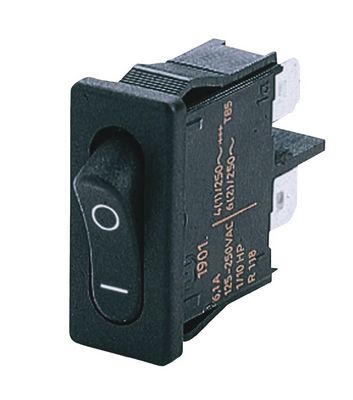

Marquardt Single Pole Single Throw (SPST), Momentary Rocker Switch Panel Mount [1901.1103]; 907-6977
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Switch Operation | On-None-Off |
| Panel Cut Out Width | 19.2mm |
| Panel Cut Out Height | 6.8mm |
| Contact Current Rating | 0.25 |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP40 |
| Terminal Type | Quick Connect |
| Legend Text | On (symbol); Off (symbol) |
| Actuator Shape | Rectangular |
| Operating Temperature Range | -20 → +55 (Actuating Side) °C, -20 → +85 (Terminal Side) °C |
| Panel Cut Out Size | 19.8 x 6.8mm |
| Contact Resistance | <100mΩ |
| Minimum Operating Temperature | -20 (Actuating Side) °C, -20 (Terminal Side) °C |
| Legend Text Colour | White |
| Contact Material | Silver |
| AC Voltage Rating | 250V |
| Mechanical Life | 75000Operations |
| Case Material | Polyamide |
| Maximum Operating Temperature | +55 (Actuating Side) °C, +85 (Terminal Side) °C |
