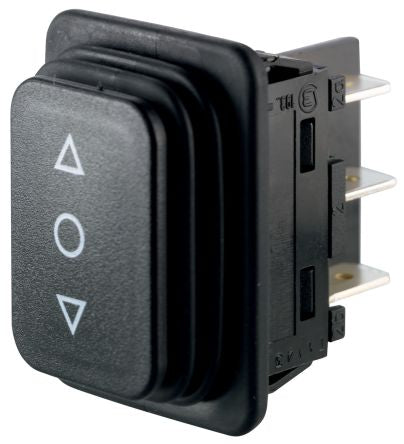

Marquardt DPDT Rocker Switch Panel Mount [1939.3314]; 907-7074
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | DPDT |
| Switch Operation | (On)-Off-(On) |
| Panel Cut Out Width | 30mm |
| Panel Cut Out Height | 22mm |
| Contact Current Rating | 0 |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP65 |
| Terminal Type | Quick Connect |
| Legend Text | On; Off |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 30.2 x 22mm |
| AC Voltage Rating | 250V |
| Case Material | Polyamide |
| Contact Resistance | <100mΩ |
| Contact Material | Silver |
| Minimum Operating Temperature | -30 (Actuating Side) °C, -30 (Terminal Side) °C |
| Legend Text Colour | White |
| Mechanical Life | 50000Operations |
| Maximum Operating Temperature | +55 (Actuating Side) °C, +105 (Terminal Side) °C |
| Operating Temperature Range | -30 → +105 (Terminal Side) °C, -30 → +55 (Actuating Side) °C |
