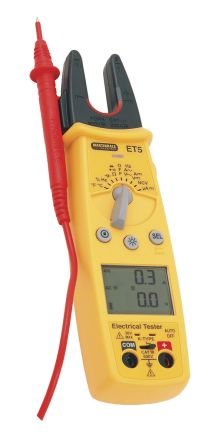

Martindale ET5 Clamp Meter, Max Current 200A ac, 200A dc CAT III 600V [RSET5]; 788-4580
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Absolute Maximum AC Current Measurement | 200A ac |
| Absolute Maximum DC Current Measurement | 200A dc |
| Absolute Maximum AC Voltage Measurement | 600V ac |
| Absolute Maximum DC Voltage Measurement | 600V dc |
| Absolute Maximum Resistance Measurement | 50MΩ |
| Model Number | ET5 |
| AC Current Measurement Resolution | 100mA |
| DC Current Measurement Resolution | 100mA |
| Best DC Current Accuracy | ±(2% rdg + 5dgts) |
| Clamp Meter Type | Multifunction Clamp |
| Best AC Current Accuracy | ±(2% rdg + 10dgts) |
| Best AC Voltage Accuracy | ±(1.2% rdg + 5dgts) |
| Best DC Voltage Accuracy | ±(0.5% rdg + 2dgts) |
| Height | 44mm |
| AC Voltage Measurement Resolution | 100µV |
| Maximum Conductor Size | 15mm |
| True RMS | Yes |
| Power Source | Battery |
| Non-Contact Voltage Detector | Yes |
| Width | 51mm |
| Length | 202.5mm |
| Resistance Measurement Resolution | 100mΩ |
| Dimensions | 202.5 x 51 x 44mm |
| Minimum Operating Temperature | 0°C |
| DC Voltage Measurement Resolution | 100µV |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature |
| Best Temperature Measurement Accuracy | ±2% + 5 °C |
| Battery Life | 100 h |
| Jaw Capacity Busbars | 15mm |
| Weight | 200g |
| Absolute Maximum Temperature Measurement | +500°C |
| Battery Type | 9V |
| Safety Category Voltage | 600V |
| Safety Category Level | CAT lll |
| Temperature Measurement Resolution | 0.1°C |
| Safety Category | CAT III 600V |
| Display Type | LCD |
| Maximum Operating Temperature | +40°C |
| Best Resistance Measurement Accuracy | ±3% + 5 Digits |
