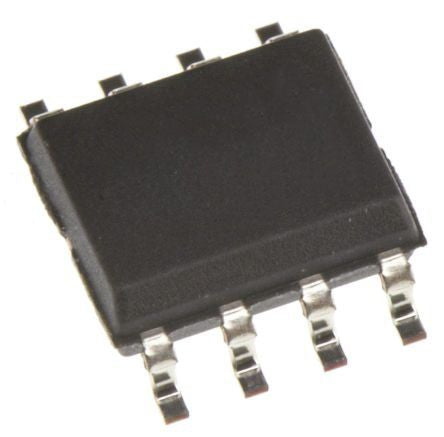

Ultra-H-Speed LNoise Open-Loop Buffers [MAX4200ESA+]; 190-6338
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | High Speed, Low Noise, Low Power |
| Mounting Type | Surface Mount |
| Package Type | SO |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 4 → 5.5 V |
| Typical Gain Bandwidth Product | 660MHz |
| Output Type | Current |
| Typical Slew Rate | 4200V/µs |
| Maximum Operating Frequency | 500 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Typical Voltage Gain | 0.96 V/V |
| Minimum Input Voltage | 4 V |
| Input Voltage Range | 4 → 5.5 V |
| Typical Input Voltage Noise Density | 2.1nV/√Hz |
| Dimensions | 5 x 4 x 1.5mm |
| Length | 5mm |
| Output Current | 90 (Typ.) mA |
| Height | 1.5mm |
| Maximum Input Voltage | 5.5 V |
| Width | 4mm |
| Offset Voltage | 15mV |
