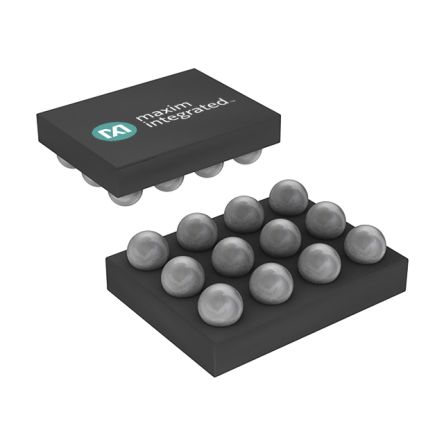

MAX4233ABC+T,Op Amps [MAX4233ABC+T]; 191-3315
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | UCSP |
| Power Supply Type | Dual |
| Number of Channels per Chip | 2 |
| Pin Count | 10 |
| Typical Gain Bandwidth Product | 10MHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | ±1.35 to ±2.5V |
| Typical Slew Rate | 10V/µs |
| Maximum Operating Frequency | 10 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
| Input Voltage Range | 2.7 → 5.5 V |
| Width | 2.02mm |
| Height | 0.4mm |
| Typical Input Voltage Noise Density | 15nV/√Hz |
| Output Current | 200 (Typ.) mA |
| Length | 1.54mm |
| Dimensions | 1.54 x 2.02 x 0.4mm |
| Typical Voltage Gain | 100 dB |
| Maximum Input Voltage | 5.5 V |
| Minimum Input Voltage | 2.7 V |
| Offset Voltage | ±8mV |
