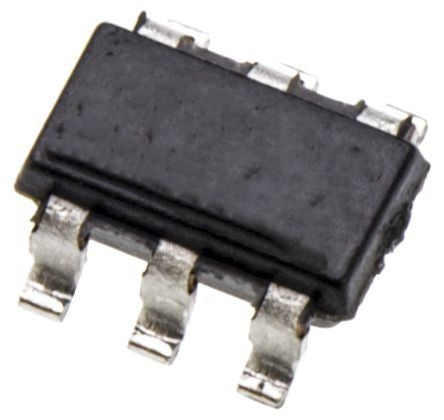

OP AMP PRECISION LOW-NOISE RRO SOT23-6 [MAX4238AUT+T]; 189-9102
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Precision |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 6 |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Typical Gain Bandwidth Product | 1MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 0.35V/µs |
| Maximum Operating Frequency | 100 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
| Output Current | 40 (Typ.) mA |
| Length | 3mm |
| Dimensions | 3 x 1.75 x 1.3mm |
| Typical Input Voltage Noise Density | 30nV/√Hz |
| Height | 1.3mm |
| Input Offset Current | 2pA |
| Input Voltage Range | 2.7 → 5.5 V |
| Typical Voltage Gain | 150 dB |
| Offset Voltage | 2µV |
| Width | 1.75mm |
| Maximum Input Voltage | 5.5 V |
| Minimum Input Voltage | 2.7 V |
