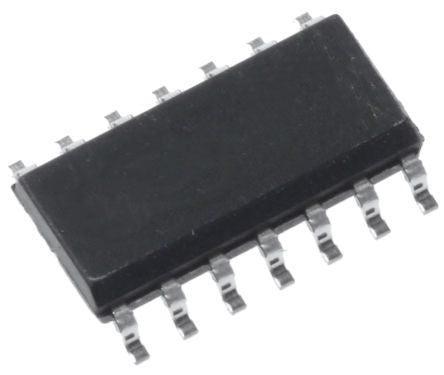

36V Precision Low-Power 90uA Dual Op Amp [MAX44245ASD+]; 190-4336
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | SO |
| Power Supply Type | Dual, Single |
| Number of Channels per Chip | 4 |
| Pin Count | 14 |
| Typical Single Supply Voltage | 2.7 → 36 V |
| Typical Gain Bandwidth Product | 1MHz |
| Output Type | Rail to Rail |
| Typical Dual Supply Voltage | ±1.35 to ±18V |
| Typical Slew Rate | 0.7V/µs |
| Maximum Operating Frequency | 1 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Dimensions | 8.75 x 4 x 1.5mm |
| Maximum Input Voltage | 36 V |
| Length | 8.75mm |
| Typical Input Voltage Noise Density | 50nV/√Hz |
| Minimum Input Voltage | 2.7 V |
| Output Current | 40 (Typ.) mA |
| Offset Voltage | 10µV |
| Width | 4mm |
| Input Voltage Range | 2.7 → 36 V |
| Input Offset Current | 1400pA |
| Typical Voltage Gain | 150 dB |
| Height | 1.5mm |
