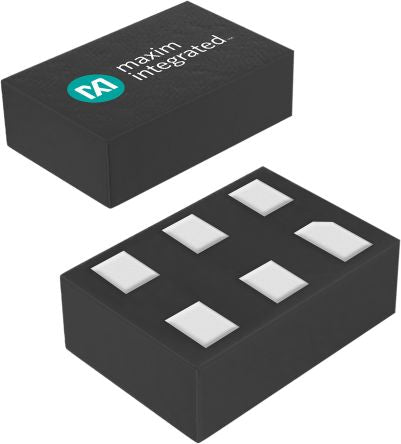

1.8V 15MHz Low-Offset Low-Power [MAX44260AYT+T]; 190-6371
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | μDFN |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 6 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Typical Gain Bandwidth Product | 15MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 7V/µs |
| Maximum Operating Frequency | 10 kHz |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Maximum Input Voltage | 5.5 V |
| Minimum Input Voltage | 1.8 V |
| Dimensions | 1.55 x 1.05 x 0.55mm |
| Length | 1.55mm |
| Input Voltage Range | 1.8 → 5.5 V |
| Typical Voltage Gain | 100 dB |
| Height | 0.55mm |
| Offset Voltage | 500µV |
| Typical Input Voltage Noise Density | 12.7nV/√Hz |
| Width | 1.05mm |
| Output Current | 50 (Typ.) mA |
