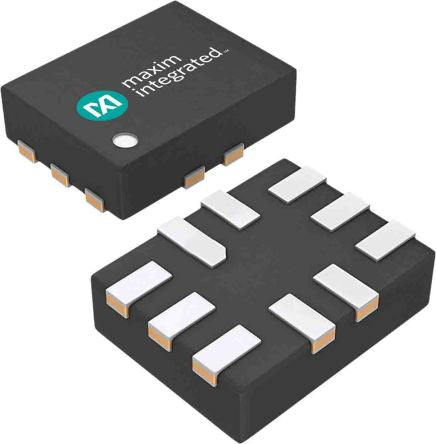

MAX9638AVB+T,Op Amps [MAX9638AVB+T]; 191-3550
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | UTQFN |
| Power Supply Type | Dual |
| Number of Channels per Chip | 2 |
| Pin Count | 10 |
| Typical Gain Bandwidth Product | 1.5MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 0.9V/µs |
| Maximum Operating Frequency | 10 kHz |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +125 °C |
| Length | 1.9mm |
| Maximum Input Voltage | 5.5 V |
| Typical Input Voltage Noise Density | 38nV/√Hz |
| Minimum Input Voltage | 2.1 V |
| Offset Voltage | 3.5mV |
| Height | 0.5mm |
| Width | 1.5mm |
| Input Voltage Range | 2.1 → 5.5 V |
| Typical Voltage Gain | 124 dB |
| Dimensions | 1.9 x 1.5 x 0.5mm |
| Output Current | 55 (Typ.) mA |
