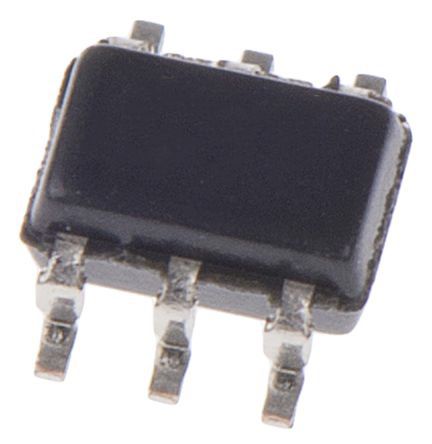

MAX9915EXT+T,Op Amps [MAX9915EXT+T]; 191-3588
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Amplifier Type | Operational Amplifier |
| Mounting Type | Surface Mount |
| Package Type | SC-70 |
| Power Supply Type | Single |
| Number of Channels per Chip | 1 |
| Pin Count | 6 |
| Typical Single Supply Voltage | 1.8 → 5.5 V |
| Typical Gain Bandwidth Product | 1MHz |
| Output Type | Rail to Rail |
| Typical Slew Rate | 0.5V/µs |
| Maximum Operating Frequency | 1 kHz |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage | 1.8 V |
| Offset Voltage | 1mV |
| Width | 1.35mm |
| Maximum Input Voltage | 5.5 V |
| Input Voltage Range | 1.8 → 5.5 V |
| Typical Voltage Gain | 120 dB |
| Typical Input Voltage Noise Density | 160nV/√Hz |
| Output Current | 15 (Typ.) mA |
| Height | 1mm |
| Length | 2.15mm |
| Dimensions | 2.15 x 1.35 x 1mm |
| Input Offset Current | 10pA |
