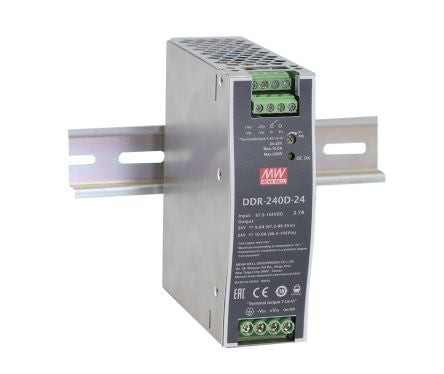

Mean Well DDR-240 240W Isolated DC-DC Converter DIN Rail Mount, Voltage in 16.8 → 33.6 V dc, Voltage out 24V dc [DDR-240B-24]; 179-2846
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Input Voltage Range | 16.8 → 33.6 V dc |
| Input Voltage Nominal | 16.8 → 33.6 V dc |
| Isolation Voltage | 4kV dc |
| Power Rating | 240W |
| Output Current | 10A |
| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 |
| Efficiency | 0.9 |
| Railway Approved | Yes |
| Minimum Temperature | -40°C |
| Load Regulation | ±1% |
| Maximum Temperature | +70°C |
| Length | 40mm |
| Series | DDR-240 |
| Standards Met | CE Certificate, EAC Certificate, EN45545-2, EN50121-3-2, EN50155, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC60571, IEC61373 |
| Depth | 113.5mm |
| Width | 125.2mm |
