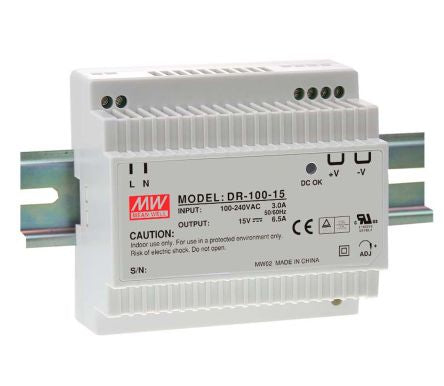

Mean Well, DR DIN Rail Panel Mount Power Supply, 15V dc Output Voltage, 6.5A Output Current [DR-100-15]; 765-4641
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 88 → 264V ac |
| Output Voltage | 15 V dc |
| Output Current | 6.5 A |
| Power Rating | 100W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 93mm |
| Width | 100mm |
| Maximum Temperature | +60°C |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Series | DR |
| Special Features | Overvoltage and Short Circuit Protection |
| Load Regulation | ±1% |
| Output Voltage Adjustment Range | 15 → 18V |
| MTBF | 486kh |
| Ripple And Noise | 120mV Pk-Pk |
| Minimum Temperature | -20°C |
| Depth | 56mm |
| Mounting Type | DIN Rail Mount |
