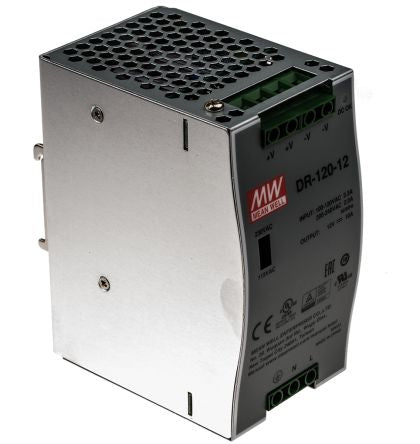

Mean Well, DR DIN Rail Panel Mount Power Supply, 12V dc Output Voltage, 10A Output Current [DR-120-12]; 282-518
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 88 → 132V ac |
| Output Voltage | 12 V dc |
| Output Current | 0.416666666666667 |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 125mm |
| Width | 65.5mm |
| Series | DR |
| Maximum Temperature | +60°C |
| Output Voltage Adjustment Range | 12 → 14V |
| Mounting Type | DIN Rail Mount |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Special Features | Overvoltage and Short Circuit Protection |
| Load Regulation | ±1% |
| MTBF | 136800h |
| Ripple And Noise | 80mV Pk-Pk |
| Minimum Temperature | -10°C |
| Depth | 100mm |
