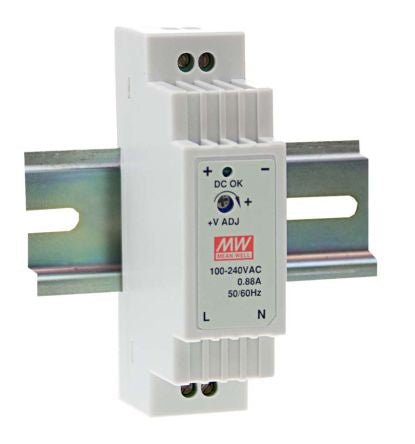

Mean Well, DR DIN Rail Panel Mount Power Supply, 15V dc Output Voltage, 1A Output Current [DR-15-15]; 712-7405
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 15 V dc |
| Output Current | 0.0416666666666667 |
| Power Rating | 15W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 93mm |
| Width | 25mm |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| MTBF | 1172300h |
| Output Voltage Adjustment Range | 13.5 → 16.5V |
| Maximum Temperature | +60°C |
| Load Regulation | ±1% |
| Series | DR |
| Depth | 56mm |
| Ripple And Noise | 120mV Pk-Pk |
| Minimum Temperature | -20°C |
| Mounting Type | DIN Rail Mount |
| Special Features | Overvoltage and Short Circuit Protection |
