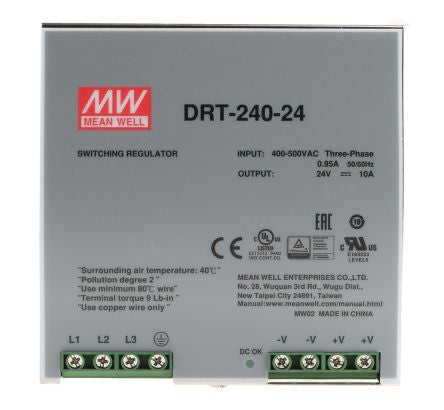

Mean Well, DRT DIN Rail Panel Mount Power Supply, 24V dc Output Voltage, 10A Output Current [DRT-240-24]; 282-603
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 340 → 550V ac |
| Output Voltage | 24 V dc |
| Output Current | 0.416666666666667 |
| Power Rating | 240W |
| Number of Outputs | 1 |
| Electrical Phase | 3 |
| Type | Switch Mode |
| Height | 125mm |
| Width | 276mm |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Depth | 100mm |
| Minimum Temperature | -20°C |
| Series | DRT |
| Maximum Temperature | +70°C |
| MTBF | 114600h |
| Output Voltage Adjustment Range | 24 → 28V |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 80mV Pk-Pk |
| Special Features | Overvoltage and Short Circuit Protection |
| Load Regulation | ±0.5% |
