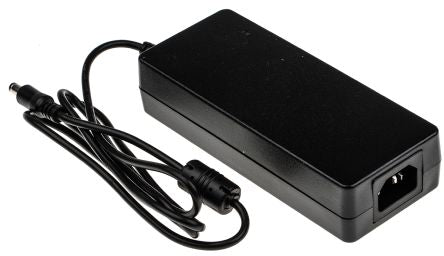

Mean Well 24V Power Supply for General Electronics, Industrial, Office Facilities, Telecom, 3.75A [GST90A24-P1M]; 880-8427
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Input Voltage Range | 90 → 264 V ac, 127 → 370 V dc |
| Output Voltage Rating | 24 V |
| Output Current Range | 3.75A |
| Rated Output Power | 90W |
| Input Connector | IEC320-C14 |
| Output Connection Type | P1J |
| Number of Outputs | 1 |
| Load Regulation Range | ±3% |
| Cable Length | 1200mm |
| Maximum Temperature | +70°C |
| Standards Met | AU/NZ MEPS, BSMI CNS14336, CB, CCC GB4943, CE, Class B, CNS13438, CoC Version 5, CULus, EISA 2007/DoE, EN 000-4-11, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, Energy E |
| Energy Efficiency Level | VI |
| Series | GST90A |
| Holdup Time | 20 ms @ 115 V ac (Full Load), 20 ms @ 230 V ac |
| Overall Dimensions | 145 x 60 x 32mm |
| Weight | 450g |
| Efficiency | 0.9 |
| Overall Length | 145mm |
| Minimum Temperature | -30°C |
| Operating Temperature Range | -30 → +70 °C |
| Overall Width | 60mm |
| Overall Depth | 32mm |
