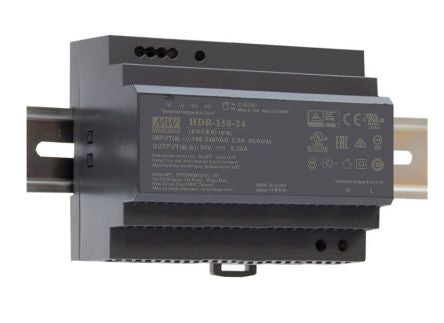

Mean Well, HDR-150 DIN Rail Power Supply, 24V dc Output Voltage, 6.25A Output Current [HDR-150-24]; 181-7012
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac, Dc |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 24 V dc |
| Output Current | 6.25 A |
| Power Rating | 150W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Power Supply |
| Height | 90mm |
| Width | 105mm |
| Load Regulation | ±1% |
| Series | HDR-150 |
| Output Voltage Adjustment Range | 21.6 → 29V |
| MTBF | 536kh |
| Standards Met | CB IEC 62368-1, CE Certified, CRUus UL62368-1, CULus Recognized, EN 61558, EN55032, EN61000-3-2, EN61000-3-3, EN61000-4-11, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8 |
| Special Features | Cooling by Free Air Convection, Ultra Slim Design with 105 mm Width, 3 Year Warranty |
| Ripple And Noise | 150mV Pk-Pk |
| Efficiency | 0.905 |
| Minimum Temperature | -30°C |
| Depth | 55mm |
| Mounting Type | DIN Rail Mount |
| Maximum Temperature | +70°C |
