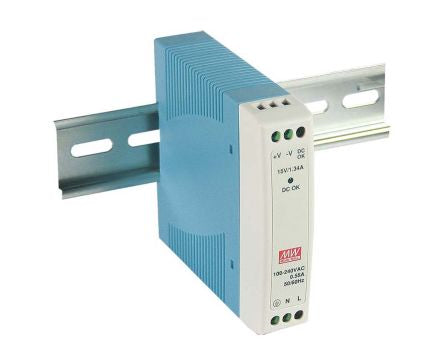

Mean Well, MDR DIN Rail Panel Mount Power Supply, 15V dc Output Voltage, 670mA Output Current [MDR-10-15]; 712-7414
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 85 → 264V ac |
| Output Voltage | 15 V dc |
| Output Current | 670 mA |
| Power Rating | 10W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 100mm |
| Width | 22.5mm |
| MTBF | 584000h |
| Output Voltage Adjustment Range | 4.75 → 5.5V |
| Mounting Type | DIN Rail Mount |
| Depth | 90mm |
| Minimum Temperature | -20°C |
| Ripple And Noise | 120mV Pk-Pk |
| Special Features | Overvoltage and Short Circuit Protection |
| Load Regulation | ±3% |
| Maximum Temperature | +70°C |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Series | MDR |
