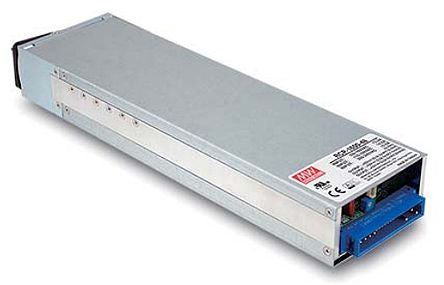

Mean Well RCP-1600-12 Rack Mount Power Supply 127 → 370 V dc, 90 → 264 V ac 12V dc 0 → 125A [RCP-1600-12]; 123-4990
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Load Regulation | ±0.5% |
| Input Voltage | 90 → 264 V ac, 127 → 370 V dc |
| Output Voltage | 12 V dc |
| Output Current | 0 → 125A |
| Power Rating | 1500W |
| Number of Outputs | 1 |
| Mounting Type | Rack Mount |
| MTBF | 162.2kh |
| Line Regulation | ±0.5% |
| Ripple And Noise | 150mV Pk-Pk |
| Weight | 1.9kg |
| Input Frequency Range | 47 → 63Hz |
| Holdup Time | 10 ms @ 230 V ac |
| Maximum Input Current | 8 A @ 230 V ac, 14 A @ 115 V ac |
| Series | RCP-1600 |
| Standards Met | CB, CE, CULus Recognised, EMC: EN 55022/55024, EN 55011, EN 61000-3-2, EN 61000-3-3, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-6-2, EN 61204-3, PFC, TUV Rheinland, UL/EN/IEC 60950-1 |
| Maximum Temperature | +70°C |
| Power Signal Conversion Type | AC-DC |
| Protection Features | Over Temperature Protection, Over Voltage Protection, Overload Protection, Short Circuit Protection |
| Application | Constant Current Source System, Distributed Power Architecture System, Electric Vehicle Charger System, Industrial Automation, Redundant Power System, Wireless/Telecommunication System |
| Minimum Temperature | -30°C |
| Special Features | High Efficiency, Universal AC Input/Full Range |
