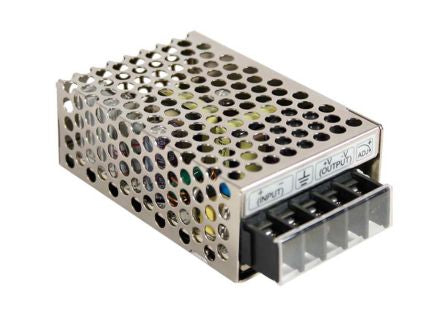

Mean Well 15W Isolated DC-DC Converter Chassis Mount, Voltage in 9.2 → 18 V dc, Voltage out 24V dc [SD-15A-24]; 678-3540
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Output Voltage Adjustment Range | 21.6 → 26.4V |
| Input Voltage Range | 9.2 → 18 V dc |
| Input Voltage Nominal | 12 V dc |
| Isolation Voltage | 2kV ac |
| Power Rating | 15W |
| Output Current | 625mA |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Efficiency | 0.7 |
| Minimum Temperature | -10°C |
| Load Regulation | ±0.2% |
| Maximum Temperature | +60°C |
| Standards Met | EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A, 3, 4, 5, 6, 8 |
| Depth | 28mm |
| Width | 51mm |
| Length | 78mm |
