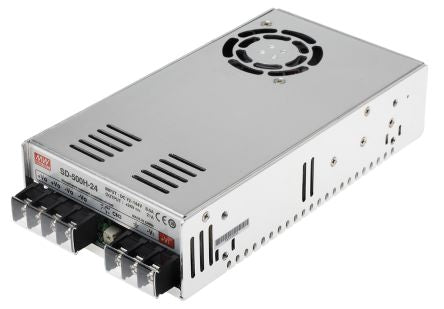

Mean Well 500W Isolated DC-DC Converter Chassis Mount, Voltage in 72 → 144 V dc, Voltage out 24V dc [SD-500H-24]; 678-3669
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 24V dc |
| Output Voltage Adjustment Range | 23 → 30V |
| Input Voltage Range | 72 → 144 V dc |
| Input Voltage Nominal | 96 V dc |
| Isolation Voltage | 2kV ac |
| Power Rating | 500W |
| Output Current | 21A |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Efficiency | 0.89 |
| Load Regulation | ±0.5% |
| Minimum Temperature | -20°C |
| Maximum Temperature | +60°C |
| Standards Met | EN 55022 (CISPR22) Class B, EN 61000-4-2, ENV 50204, Heavy Industry Level Criteria A, 3, 4, 5, 6, 8 |
| Depth | 50mm |
| Width | 115mm |
| Length | 215mm |
