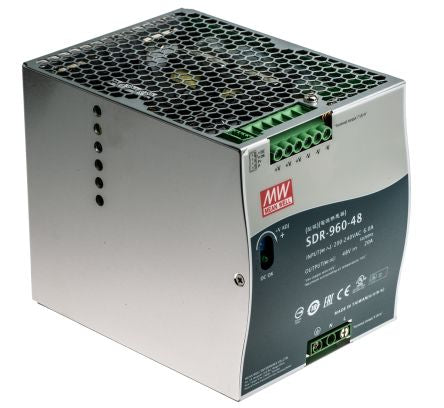

Mean Well, SDR DIN Rail Power Supply, 48V dc Output Voltage, 20A Output Current [SDR-960-48]; 122-2227
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 180 → 264V ac |
| Output Voltage | 48 V dc |
| Output Current | 20 A |
| Power Rating | 960W |
| Number of Outputs | 1 |
| Electrical Phase | 1 |
| Type | Switch Mode |
| Height | 125mm |
| Width | 110mm |
| Load Regulation | ±1% |
| Output Voltage Adjustment Range | 48 → 55V |
| Series | SDR |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Maximum Temperature | +70°C |
| Special Features | Overvoltage and Short Circuit Protection |
| Depth | 150mm |
| Mounting Type | DIN Rail Mount |
| MTBF | 69.8kh |
| Ripple And Noise | 250mV Pk-Pk |
| Minimum Temperature | -30°C |
