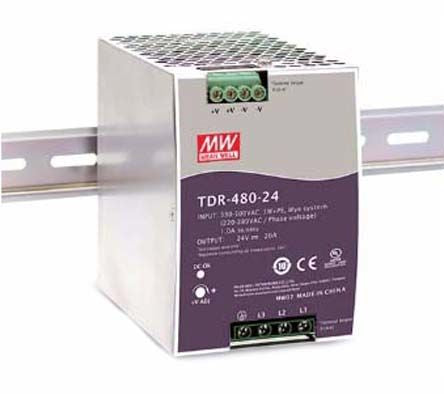

Mean Well, TDR DIN Rail Power Supply, 24V dc Output Voltage, 20A Output Current [TDR-480-24]; 145-7857
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Output Voltage | Dc |
| Input Voltage | 340 → 550 V ac, 480 → 780 V dc |
| Output Voltage | 24 V dc |
| Output Current | 20 A |
| Power Rating | 480W |
| Number of Outputs | 1 |
| Electrical Phase | 3 |
| Type | Switch Mode |
| Height | 125.2mm |
| Width | 85.5mm |
| Minimum Temperature | -30°C |
| Depth | 128.5mm |
| Mounting Type | DIN Rail |
| Output Voltage Adjustment Range | 24 → 28V |
| MTBF | 391.7kh |
| Load Regulation | ±1% |
| Special Features | Overvoltage and Short Circuit Protection |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Maximum Temperature | +70°C |
| Ripple And Noise | 150mV Pk-Pk |
| Series | TDR |
