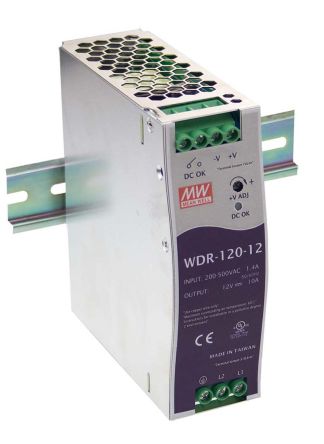

Mean Well, WDR DIN Rail Panel Mount Power Supply, 12V dc Output Voltage, 10A Output Current [WDR-120-12]; 765-4673
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| AC or DC Input Voltage | Ac |
| AC or DC Output Voltage | Dc |
| Input Voltage | 180 → 550V ac |
| Output Voltage | 12 V dc |
| Output Current | 0.416666666666667 |
| Power Rating | 120W |
| Number of Outputs | 1 |
| Electrical Phase | 1, 2 |
| Type | Switch Mode |
| Height | 125mm |
| Width | 40mm |
| Mounting Type | DIN Rail Mount |
| Ripple And Noise | 120mV Pk-Pk |
| Minimum Temperature | -25°C |
| Depth | 114mm |
| Series | WDR |
| Standards Met | RoHS Compliant, TUV EN 60950-1, UL 508 |
| Maximum Temperature | +70°C |
| Special Features | Overvoltage and Short Circuit Protection |
| Load Regulation | ±0.5% |
| Output Voltage Adjustment Range | 12 → 15V |
| MTBF | 268kh |
