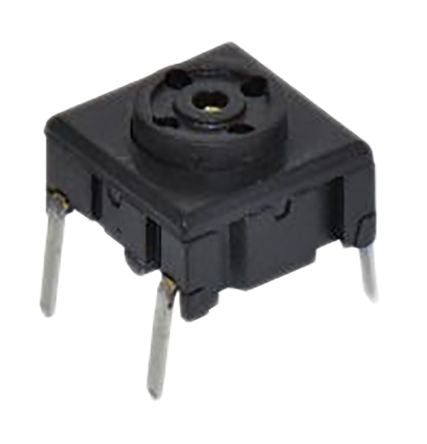

IP67 Black Flat Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 6.5 (Dia.)mm PCB [3ETH9-09-5]; 912-0409
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 6.5 (Dia.)mm |
| Actuator Colour | Black |
| Actuator Type | Flat Button |
| Length | 12.5mm |
| Width | 6.4mm |
| Dimensions | 12.5 x 6.4mm |
| Mounting Type | PCB |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Operating Force | 3.5 N |
| Mechanical Life | 10000000Operations |
| Maximum Operating Temperature | +160°C |
| Minimum Operating Temperature | -40°C |
| Operating Temperature Range | -40 → +160°C |
| Voltage Rating | 24V dc |
| Height | 9.5mm |
