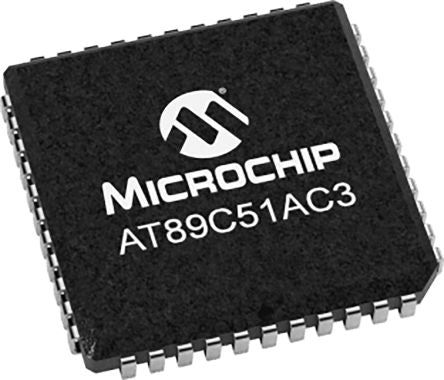

Microchip Technology AT89C51AC3-SLSUM, 8bit 8 bit CPU Microcontroller, 60MHz, 64 kB Flash, 44-Pin PLCC [AT89C51AC3-SLSUM]; 177-1882
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT89C51 |
| Package Type | PLCC |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | 8 bit CPU |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 60MHz |
| RAM Size | 256 B |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| Instruction Set Architecture | 80C51 |
| Timer Resolution | 16bit |
| Height | 4.06mm |
| Pulse Width Modulation | 1 (5 x 8 bit) |
| PWM Resolution | 8bit |
| Dimensions | 16.66 x 16.66 x 4.06mm |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Width | 16.66mm |
| Number of Timers | 1 |
| ADCs | 1 (8 x 10 bit) |
| Length | 16.66mm |
| Number of UART Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| PWM Channels | 5 |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
