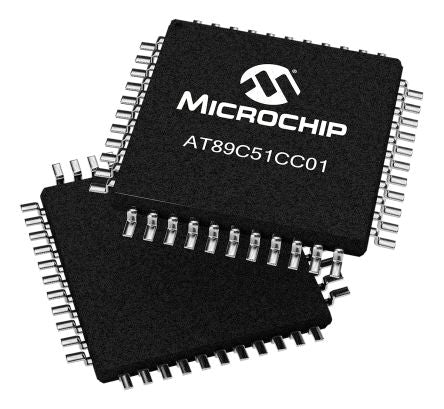

Microchip AT89C51CC01UA-RLTUM, 8bit 80C51 Microcontroller, 40MHz, 32 kB Flash, 44-Pin VQFP [AT89C51CC01UA-RLTUM]; 127-6618
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT89 |
| Package Type | VQFP |
| Mounting Type | Surface Mount |
| Pin Count | 44 |
| Device Core | 80C51 |
| Data Bus Width | 8bit |
| Program Memory Size | 32 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 1.25 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Typical Operating Supply Voltage | 3 → 5.5 V |
| Timers | 1(3 x 16 bit) |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 10.1 x 10.1 x 1.45mm |
| Pulse Width Modulation | 1(5 x 8 bit) |
| Program Memory Type | Flash |
| Number of Timers | 1 |
| PWM Resolution | 8bit |
| Instruction Set Architecture | RISC |
| Width | 10.1mm |
| PWM Channels | 5 |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| ADCs | 1(8 x 10 bit) |
| Length | 10.1mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
