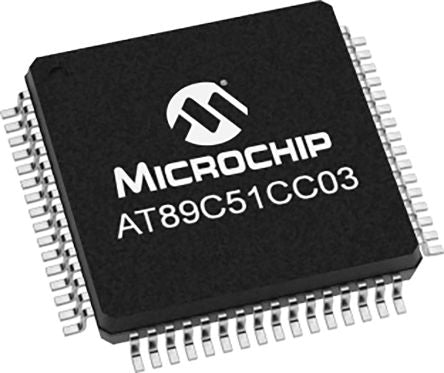

Microchip Technology AT89C51CC03CA-RDTUM, 8bit 80C51 Microcontroller, 40MHz, 64 kB Flash, 64-Pin VQFP [AT89C51CC03CA-RDTUM]; 177-3404
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT89C51 |
| Package Type | VQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | 80C51 |
| Data Bus Width | 8bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 2.048 kB |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 5.5 (Maximum) V |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 10.1 x 10.1 x 1.45mm |
| PWM Resolution | 8bit |
| Width | 10.1mm |
| PWM Channels | 5 |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| Number of Timers | 1 |
| ADCs | 1 (8 x 10 bit) |
| Length | 10.1mm |
| Number of UART Channels | 1 |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| Pulse Width Modulation | 1 (5 x 8 bit) |
| Instruction Set Architecture | C51 |
| Number of CAN Channels | 1 |
