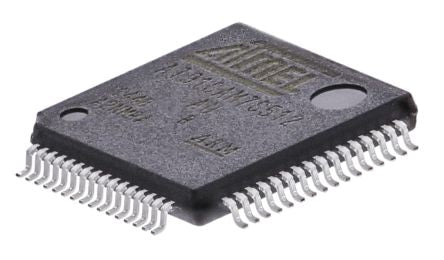

Microchip AT91SAM7S512B-AU, 32bit ARM7TDMI Microcontroller, 55MHz, 512 kB Flash, 64-Pin LQFP [AT91SAM7S512B-AU]; 738-0255
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT91 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM7TDMI |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 55MHz |
| RAM Size | 64 kB |
| USB Channels | 1 x Device |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Number of SPI Channels | 1 |
| Typical Operating Supply Voltage | 3.3 V |
| ADCs | 8 x 10 bit |
| PWM Channels | 4 |
| Width | 10mm |
| Number of ADC Units | 1 |
| Instruction Set Architecture | RISC |
| Maximum Operating Temperature | +85 °C |
| Number of Timers | 3 |
| Number of I2C Channels | 1 |
| ADC Resolution | 10bit |
| Length | 10mm |
| Pulse Width Modulation | 4 x 16 bit |
| Timers | 3 x 16 bit |
| Dimensions | 10 x 10 x 1.6mm |
| Program Memory Type | Flash |
| Number of UART Channels | 1 |
| Height | 1.6mm |
| Timer Resolution | 16bit |
| PWM Resolution | 16bit |
| Number of USART Channels | 2 |
| Minimum Operating Temperature | -40 °C |
