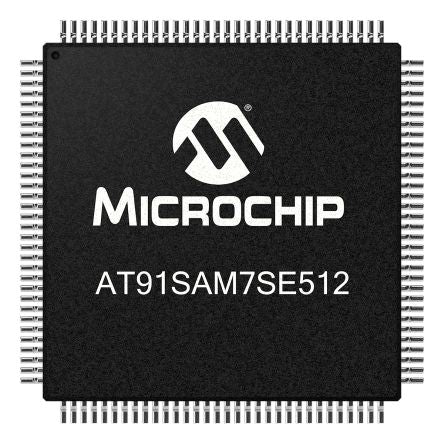

Microchip Technology AT91SAM7SE512B-AU, 32bit ARM7TDMI Microcontroller, 48MHz, 512 kB Flash, 128-Pin LQFP [AT91SAM7SE512B-AU]; 127-8174
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT91 |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 128 |
| Device Core | ARM7TDMI |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Typical Operating Supply Voltage | 1.65 → 1.95 V |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 20mm |
| ADCs | 1(8 x 10 bit) |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| PWM Channels | 4 |
| Width | 14mm |
| Timers | 1(3 x 16 bit) |
| Dimensions | 20 x 14 x 1.45mm |
| Pulse Width Modulation | 1(4 x 16 bit) |
| Program Memory Type | Flash |
| Number of Timers | 1 |
| ADC Resolution | 10bit |
| Minimum Operating Temperature | -40 °C |
