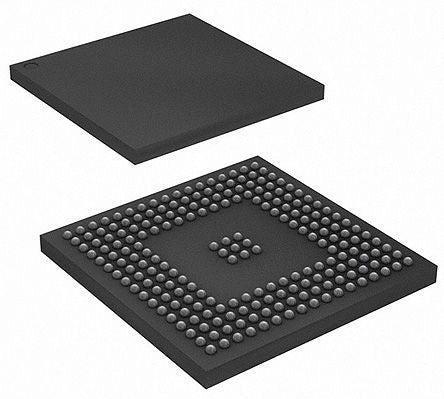

Microchip Technology AT91SAM9G25-CU, 32bit ARM926EJ-S Microcontroller, 400MHz, 64 kB Boot ROM, 217-Pin BGA [AT91SAM9G25-CU]; 127-8180
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | AT91 |
| Package Type | BGA |
| Mounting Type | Surface Mount |
| Pin Count | 217 |
| Device Core | ARM926EJ-S |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 400MHz |
| RAM Size | 32 kB |
| USB Channels | 3 |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Typical Operating Supply Voltage | 0.9 → 1.1 V |
| Dimensions | 15.05 x 15.05 x 0.9mm |
| Timers | 2 (3 x 32 bit) |
| PWM Channels | 4 |
| Number of Timers | 2 |
| Program Memory Type | Boot ROM |
| Width | 15.05mm |
| Pulse Width Modulation | 1(4 x 16 bit) |
| Length | 15.05mm |
| ADCs | 1(12 x 10 bit) |
| Timer Resolution | 32bit |
| Height | 0.9mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| Instruction Set Architecture | ARM |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
