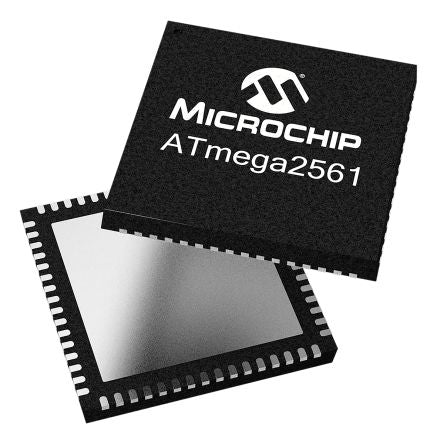

Microchip Technology ATMEGA2561-16MU, 8bit AVR Microcontroller, 16MHz, 256 kB Flash, 64-Pin MLF [ATMEGA2561-16MU]; 127-8287
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATmega |
| Package Type | MLF |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | AVR |
| Data Bus Width | 8bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 16MHz |
| RAM Size | 8 kB |
| Number of PWM Units | 2 |
| ADC Channels | 8 |
| Typical Operating Supply Voltage | 2.7 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 10bit |
| Number of Timers | 2 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1(4 x 8 bit), 1(6 x 16 bit) |
| Dimensions | 9.1 x 9.1 x 0.95mm |
| Timers | 1(2 x 8 bit), 1(4 x 16 bit) |
| Width | 9.1mm |
| PWM Channels | 10 |
| Height | 0.95mm |
| Timer Resolution | 8 bit, 16 bit |
| ADCs | 1(8 x 10 bit) |
| Length | 9.1mm |
| Maximum Operating Temperature | +85 °C |
| Number of ADC Units | 1 |
| PWM Resolution | 8 bit, 16 bit |
| Instruction Set Architecture | RISC |
