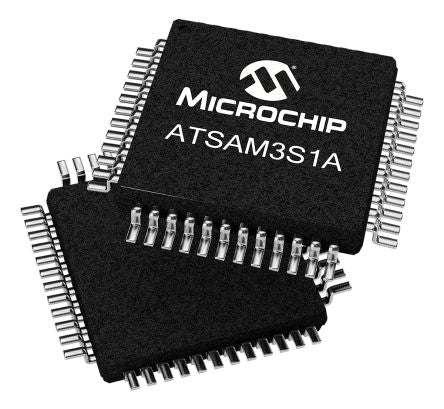

Microchip Technology ATSAM3S1AB-AU, 32bit ARM Cortex M3 Microcontroller, 64MHz, 64 kB Flash, 48-Pin LQFP [ATSAM3S1AB-AU]; 131-0380
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | SAM3S |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Device Core | ARM Cortex M3 |
| Data Bus Width | 32bit |
| Program Memory Size | 64 kB |
| Maximum Frequency | 64MHz |
| RAM Size | 16 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 8 |
| Typical Operating Supply Voltage | 1.8 V, 3.3 V |
| Number of Timers | 1 |
| ADCs | 1(8 x 12 bit) |
| Length | 7mm |
| Maximum Operating Temperature | +85 °C |
| Program Memory Type | Flash |
| Number of ADC Units | 1 |
| PWM Resolution | 16bit |
| Pulse Width Modulation | 1(4 x 16 bit) |
| Dimensions | 7 x 7 x 1.45mm |
| Minimum Operating Temperature | -40 °C |
| Timers | 1(6 x 16 bit) |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| PWM Channels | 4 |
| Width | 7mm |
