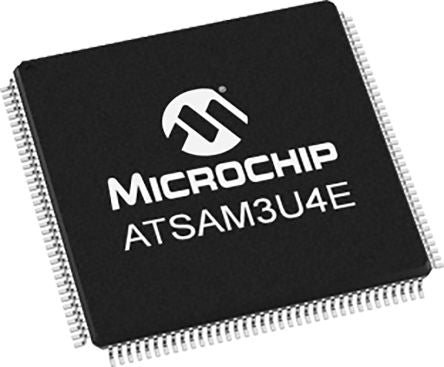

Microchip Technology ATSAM3U4EA-AU, 32bit ARM Cortex-M3 Microcontroller, 96MHz, 256 kB Flash, 144-Pin LQFP [ATSAM3U4EA-AU]; 177-3454
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATSAM |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex-M3 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 96MHz |
| RAM Size | 52 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 5 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| PWM Resolution | 16bit |
| Instruction Set Architecture | Harvard, RISC |
| Number of ADC Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Length | 20mm |
| ADCs | 1 (8 x 10 bit), 1 (8 x 12 bit) |
| Timer Resolution | 16bit |
| Height | 1.45mm |
| PWM Channels | 4 |
| Width | 20mm |
| Data Rate | 400kbit/s |
| Number of USART Channels | 4 |
| Dimensions | 20 x 20 x 1.45mm |
| Pulse Width Modulation | 1 (4 x 16 bit) |
| Program Memory Type | Flash |
| Minimum Operating Temperature | -40 °C |
| Number of I2C Channels | 2 |
| ADC Resolution | 10 bit, 12 bit |
| Number of UART Channels | 1 |
| Number of Timers | 1 |
