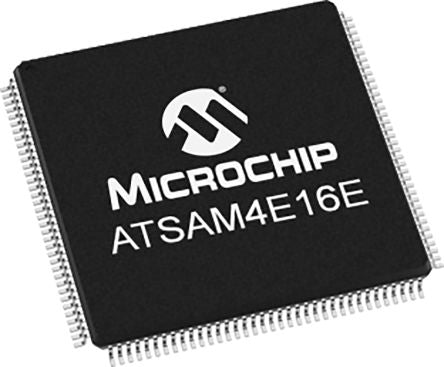

Microchip Technology ATSAM4E16EA-AUR, 32bit ARM Cortex M4 MCU, 32.768kHz, 1.024 MB Flash, 144-Pin LQFP [ATSAM4E16EA-AUR]; 177-2787
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATSAM |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1.024 MB |
| Maximum Frequency | 32.768kHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of Ethernet Channels | 1 |
| Number of USART Channels | 2 |
| Timers | 3 (3 x 32 bit) |
| Number of Timers | 3 |
| Number of UART Channels | 2 |
| Pulse Width Modulation | 1 (4 x 16 bit) |
| Program Memory Type | Flash |
| Width | 20mm |
| Number of I2C Channels | 2 |
| Dimensions | 20 x 20 x 1.45mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 20mm |
| ADCs | 1 (24 x 16 bit) |
| Timer Resolution | 32bit |
| Height | 1.45mm |
| Number of CAN Channels | 2 |
| Instruction Set Architecture | RISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| PWM Channels | 4 |
| Maximum Number of Ethernet Channels | 1 |
| ADC Resolution | 16bit |
