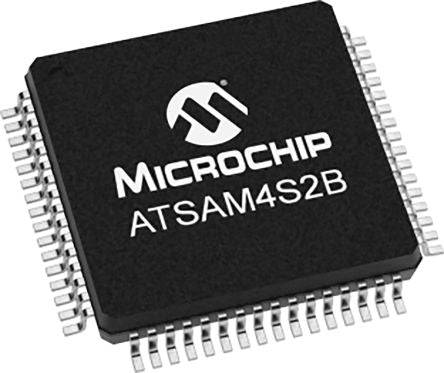

Microchip Technology ATSAM4S2BA-AU, 32bit Microcontroller, 120MHz, 128 kB Flash, 64-Pin LQFP [ATSAM4S2BA-AU]; 177-3602
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATSAM |
| Package Type | LQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Data Bus Width | 32bit |
| Program Memory Size | 128 kB |
| Maximum Frequency | 120MHz |
| RAM Size | 64 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of I2C Channels | 2 |
| Number of Timers | 1 |
| Number of UART Channels | 2 |
| Instruction Set Architecture | Harvard, RISC |
| PWM Resolution | 16bit |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (4 x 16 bit) |
| Dimensions | 10 x 10 x 1.45mm |
| Timers | 1 (6 x 16 bit) |
| Number of USART Channels | 2 |
| Data Rate | 400kbit/s |
| Width | 10mm |
| PWM Channels | 4 |
| Height | 1.45mm |
| Timer Resolution | 16bit |
| ADCs | 1 (16 x 12 bit) |
| Length | 10mm |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
