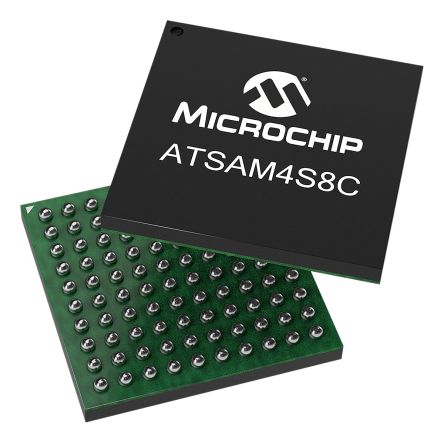

Microchip Technology ATSAM4S8CA-CU, 32bit ARM Cortex M4 MCU, 120MHz, 512 kB Flash, 100-Pin TFBGA [ATSAM4S8CA-CU]; 131-1202
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | SAM4S |
| Package Type | TFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 100 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 512 kB |
| Maximum Frequency | 120MHz |
| RAM Size | 128 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 16 |
| Typical Operating Supply Voltage | 1.2 V, 3.3 V |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | RISC |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Length | 9.05mm |
| ADCs | 1(16 x 12 bit) |
| Timer Resolution | 16bit |
| Height | 0.75mm |
| PWM Channels | 4 |
| Width | 9.05mm |
| Timers | 1(6 x 16 bit) |
| Dimensions | 9.05 x 9.05 x 0.75mm |
| Pulse Width Modulation | 1(4 x 16 bit) |
| Program Memory Type | Flash |
| Number of Timers | 1 |
