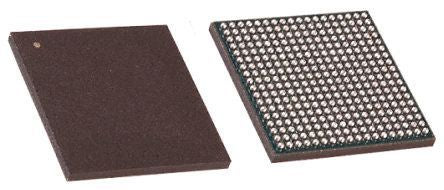

Microchip ATSAMA5D35A-CU, 32bit ARM Cortex A5 Microcontroller, 536MHz, 160 kB Flash, 324-Pin LFBGA [ATSAMA5D35A-CU]; 133-0937
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | SAMA5D3 |
| Package Type | LFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 324 |
| Device Core | ARM Cortex A5 |
| Data Bus Width | 32bit |
| Program Memory Size | 160 kB |
| Maximum Frequency | 536MHz |
| RAM Size | 128 kB |
| USB Channels | 3 |
| Number of PWM Units | 1 |
| ADC Channels | 12 |
| Typical Operating Supply Voltage | 1.2 V |
| Number of Timers | 2 |
| PWM Resolution | 16bit |
| Pulse Width Modulation | 1(4 x 16 bit) |
| Instruction Set Architecture | ARMv7-A |
| ADCs | 1(12 x 12 bit) |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| Length | 15.05mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 15.05 x 15.05 x 1.1mm |
| Minimum Operating Temperature | -40 °C |
| ADC Resolution | 12bit |
| Width | 15.05mm |
| Timer Resolution | 32bit |
| Height | 1.1mm |
| PWM Channels | 4 |
