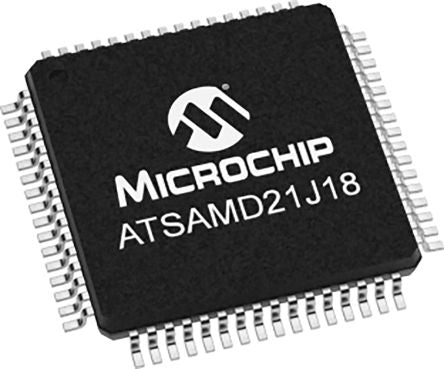

Microchip Technology ATSAMD21J18A-AF, 32bit Microcontroller, 48MHz, 256 kB Flash, 64-Pin TQFP [ATSAMD21J18A-AF]; 177-3479
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATSAMD |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Data Bus Width | 32bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 48MHz |
| RAM Size | 32 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 20 |
| Number of SPI Channels | 6 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Number of I2C Channels | 6 |
| Width | 10mm |
| Number of USART Channels | 6 |
| Timers | 1 (3 x 24 bit), 1 (5 x 16 bit) |
| Dimensions | 10 x 10 x 1.05mm |
| Pulse Width Modulation | 1 (24 Channel) |
| Program Memory Type | Flash |
| Number of UART Channels | 6 |
| Number of Timers | 2 |
| Minimum Operating Temperature | -40 °C |
| Instruction Set Architecture | ARM |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +125 °C |
| Automotive Standard | AEC-Q100 |
| Length | 10mm |
| ADCs | 1 (20 x 12 bit) |
| Timer Resolution | 16 bit, 24 bit |
| Height | 1.05mm |
| ADC Resolution | 12bit |
| Number of LIN Channels | 6 |
| PWM Channels | 24 |
