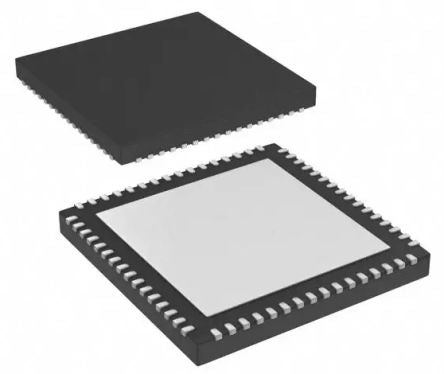

Microchip ATSAME53J20A-MU, 32bit ARM Cortex M4 MCU, 120MHz, 1 MB Flash, 64-Pin VQFN [ATSAME53J20A-MU]; 144-9430
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | ATSAME53 |
| Package Type | VQFN |
| Mounting Type | Surface Mount |
| Pin Count | 64 |
| Device Core | ARM Cortex M4 |
| Data Bus Width | 32bit |
| Program Memory Size | 1 MB |
| Maximum Frequency | 120MHz |
| RAM Size | 256 kB |
| USB Channels | 1 |
| Number of PWM Units | 1 |
| ADC Channels | 24 |
| Number of SPI Channels | 8 |
| Typical Operating Supply Voltage | 1.71 → 3.6 V |
| Number of ADC Units | 2 |
| Instruction Set Architecture | Thumb-2 |
| Minimum Operating Temperature | -40 °C |
| Maximum Number of Ethernet Channels | 1 |
| ADC Resolution | 12bit |
| Maximum Operating Temperature | +85 °C |
| Number of I2C Channels | 8 |
| Length | 9mm |
| ADCs | 2 (24 x 12 bit) |
| Timer Resolution | 16 bit, 24 bit |
| Height | 1mm |
| PWM Channels | 17 |
| Width | 9mm |
| Data Rate | 2Mbit/s |
| Number of Timers | 2 (24-bit), 3 (16-bit) |
| Number of Ethernet Channels | 1 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 1 (17 Channel) |
| Dimensions | 9 x 9 x 1mm |
| Number of USART Channels | 2 |
| Timers | 1 (2 x 24 bit), 1 (3 x 16 bit) |
