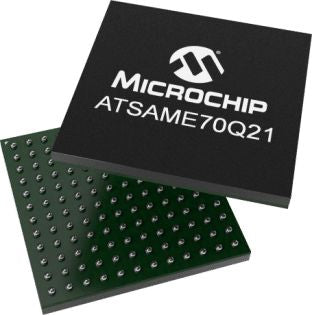

Microchip ATSAME70Q21B-CN, 32bit ARM Cortex M7 Microcontroller, 300MHz, 2 MB Flash, 144-Pin LFBGA [ATSAME70Q21B-CN]; 168-2802
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | SAME70 |
| Package Type | LFBGA |
| Mounting Type | Surface Mount |
| Pin Count | 144 |
| Device Core | ARM Cortex M7 |
| Data Bus Width | 32bit |
| Program Memory Size | 2 MB |
| Maximum Frequency | 300MHz |
| RAM Size | 384 kB |
| USB Channels | 1 |
| Number of PWM Units | 2 |
| ADC Channels | 24 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3.6 (Maximum) V |
| Maximum Operating Temperature | +105 °C |
| Length | 10mm |
| ADCs | 1 (24 x 12 bit) |
| Maximum Number of Ethernet Channels | 1 |
| ADC Resolution | 12bit |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Instruction Set Architecture | DSP |
| Number of CAN Channels | 2 |
| Number of Timers | 4 |
| Number of UART Channels | 5 |
| Program Memory Type | Flash |
| Pulse Width Modulation | 2 (4 x 16 bit) |
| Dimensions | 10 x 10x 1.08mm |
| Timers | 4 (12 x 16 bit) |
| Number of USART Channels | 3 |
| Width | 10mm |
| PWM Channels | 4 |
| Number of LIN Channels | 1 |
| Height | 1.08mm |
| Number of ADC Units | 1 |
| Number of Ethernet Channels | 1 |
| Timer Resolution | 16bit |
