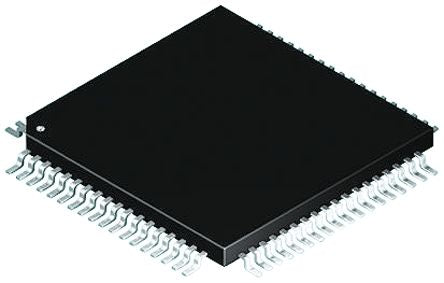

Microchip DSPIC30F6010A-20E/PT, 16bit dsPIC Microcontroller, 40MHz, 144 kB Flash, 80-Pin TQFP [DSPIC30F6010A-20E/PT]; 823-0757
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | DsPIC30F |
| Package Type | TQFP |
| Mounting Type | Surface Mount |
| Pin Count | 80 |
| Device Core | DsPIC |
| Data Bus Width | 16bit |
| Program Memory Size | 144 kB |
| Maximum Frequency | 40MHz |
| RAM Size | 8.192 kB |
| USB Channels | 1 |
| Number of PWM Units | 8 |
| ADC Channels | 16 |
| Number of SPI Channels | 2 |
| Typical Operating Supply Voltage | 3 → 5.5 V |
| ADCs | 1(16 x 10 bit) |
| Height | 1.05mm |
| PWM Channels | 8 |
| Width | 12mm |
| Timers | 4 (1 x 16 bit) |
| Dimensions | 12 x 12 x 1.05mm |
| Length | 12mm |
| Timer Resolution | 16bit |
| Number of CAN Channels | 2 |
| ADC Resolution | 10bit |
| Number of ADC Units | 1 |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Pulse Width Modulation | 8 (8 Channel) |
| Program Memory Type | Flash |
| Number of UART Channels | 2 |
| Number of Timers | 4 |
| Number of I2C Channels | 1 |
| Instruction Set Architecture | RISC |
