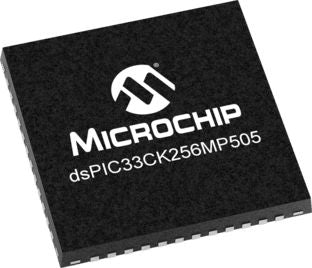

Microchip Technology, DSPIC33CK256MP505- [DSPIC33CK256MP505-I/M4]; 187-1563
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | DsPIC33CK256MP508 |
| Package Type | UQFN |
| Mounting Type | Surface Mount |
| Pin Count | 48 |
| Data Bus Width | 16bit |
| Program Memory Size | 256 kB |
| Maximum Frequency | 100MHz |
| RAM Size | 24 kB |
| Number of PWM Units | 1 |
| ADC Channels | 19 |
| Number of SPI Channels | 3 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of Timers | 1 |
| Number of I2C Channels | 3 |
| Height | 0.55mm |
| Length | 6mm |
| Number of UART Channels | 3 |
| Timer Resolution | 16bit |
| Automotive Standard | AEC-Q100 |
| Maximum Operating Temperature | +85 °C |
| Timers | 1 (1 x 16 bit) |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 6 x 6 x 0.55mm |
| PWM Resolution | 16bit |
| Pulse Width Modulation | 1 (8 x 16 bit) |
| Instruction Set Architecture | DSP |
| Number of CAN Channels | 1 |
| Number of ADC Units | 1 |
| Program Memory Type | Flash |
| PWM Channels | 8 |
| Width | 6mm |
| ADCs | 1 (19 x 12 bit) |
| ADC Resolution | 12bit |
| Data Rate | 8Mbit/s |
