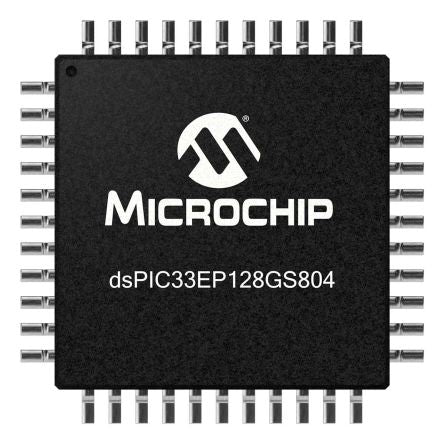

dsPIC33EP128GS804-I/PT Microchip dsPIC33EP, 16bit DSP 60MHz 128 kB Flash 44-Pin TQFP [dsPIC33EP128GS804-I/PT]; 134-5626
Original price
0₫
-
Original price
0₫
Original price
0₫
0₫
-
0₫
Current price
0₫
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Maximum Frequency | 60MHz |
| Series | dsPIC33EP |
| Device Million Instructions per Second | 70MIPS |
| Data Bus Width | 16bit |
| RAM Size | 8 kB |
| Instruction Set Architecture | DSP |
| Program Memory Size | 128 kB |
| Program Memory Type | Flash |
| Numeric and Arithmetic Format | MAC |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 44 |
| Typical Operating Supply Voltage | 3 → 3.6 V |
| Number of UART Channels | 2 |
| Dimensions | 10 x 10 x 1.05mm |
| ADC Resolution | 12bit |
| ADC Channels | 5 (S & H Circuit), 17 (Analogue) |
| PWM Channels | 8 |
| Number of I2C Channels | 2 |
| Height | 1.05mm |
| Number of CAN Channels | 2 |
| Number of Timers | 2 |
| Number of ADC Units | 2 |
| Pulse Width Modulation | 1(8 x 16 bit) |
| Length | 10mm |
| ADCs | 1(17 x 12 bit (Analogue)), 1(5 x 12 bit (S & H Circuit)) |
| Number of PWM Units | 1 |
| Maximum Operating Temperature | +85 °C |
| PWM Resolution | 16bit |
| Number of SPI Channels | 3 |
| Timer Resolution | 16 bit, 32 bit |
| Width | 10mm |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
| Timers | 1(2 x 32 bit), 1(5 x 16 bit) |
